简介
优势: 开源, 用户广, 用途广, 社区完善, 新手友好
https://www.jetbrains.com/research/python-developers-survey-2017/

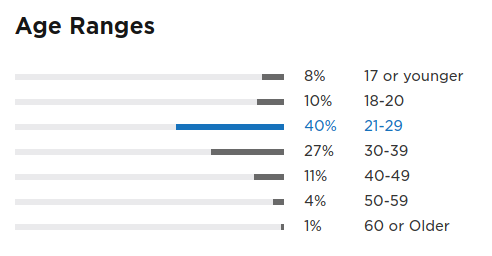

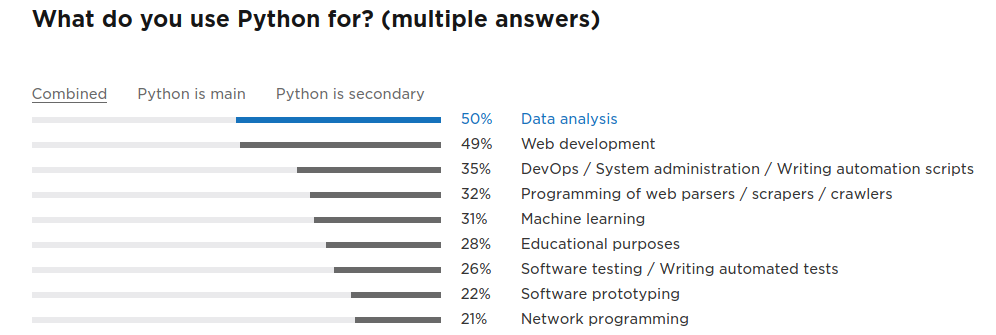

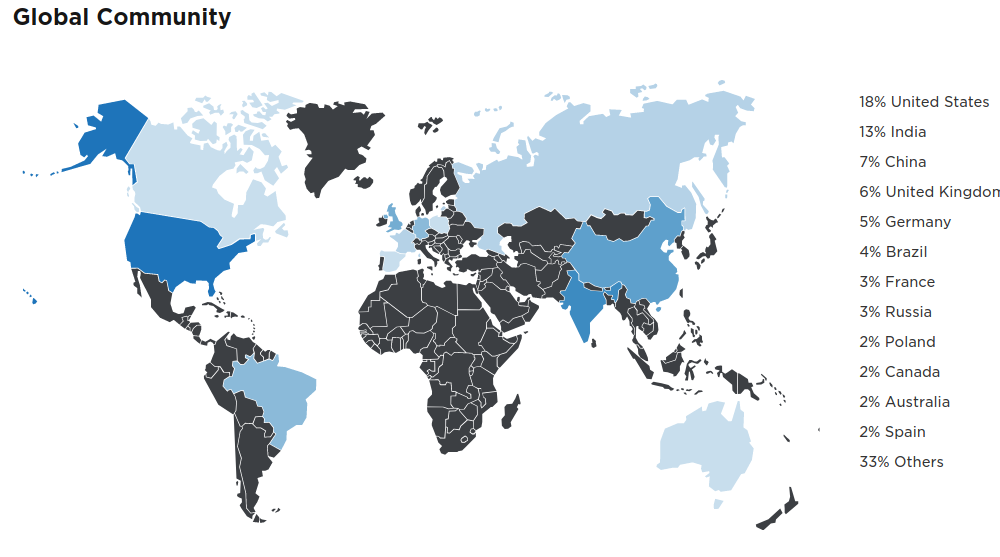

2017年的 python 使用调查报告 https://www.jetbrains.com/research/python-developers-survey-2017/
参考网站:
获取 python 包/模块/函数的帮助:
1 2 3 $ pydoc <name> $ pydoc -w <name>
基本语法
语法特点
对象编程的概念 类 -> 创建一个实例 ->
使用该实例所属的类下面的方法 1 2 3 l = [3 , 2 , 1 ] l.reverse() l.__dir__()
严格缩进 (通常采用4个半角空格) 1 2 3 if a > 0 : a += 1 print (a)
空格不敏感 1 2 a + b * c ** 2 / d f (a, b)
大小写敏感, 使用大小写组合的变量名风格
(下划线仍是合法变量名字符,但有特殊含义, 见 Python 进阶#脚本相关 ) 1 from scipy.interpolate import BSpline
1 2 import pandas as pddataFrame = pd.DataFrame(array)
见 IDL sav 文件读取
括号内换行不用换行符
单行注释 # ...
多行注释 函数或模块的开头的多行注释
(将存储在__doc__
变量), 可以用 help()
打印
同一行不同语句之间可用分号分隔
列表和数组的索引默认从0 开始
列表的最后一个元素可以加逗号 1 2 [1 , 2 ,] {'a' : 1 , 'b' : 2 ,}
etc.
print函数
1 print ('a=%.3f, b=%.1e' % (a, b))
a=1.000, b=2.0e+00
1 print (f'a={a} , b={b:.3 f} ' )
a=1.0, b=2.000
1 2 3 %%python2 print ('xxx' ),print ('yyy' )
xxx yyy
1 2 3 %%python3 print ('xxx' , end=' ' )print ('yyy' )
xxx yyy
更多格式化参考 https://pyformat.info/
基本运算
运算符参考: https://en.wikibooks.org/wiki/Python_Programming/Basic_Math
https://www.tutorialspoint.com/python/python_basic_operators.htm
2
9.0
True
True
字符串
用双引号和单引号皆可 (取决于所引内容). 字符串具有和列表 (list)
类似的运算规则 (见之后的 list 说明):
'aaaaaaaaaa'
'ab'
'a'
\n
list, tuple, dict, set
1 2 l = [0 , 1 , 2 , 3 , 4 , 5 ] t = (0 , 1 , 2 , 3 , 4 , 5 )
[0, 1, 2]
(0, 1, 2)
[1, 3]
[5, 4, 3, 2]
list 常用运算
1 2 3 4 5 6 7 l = [0 , 1 , 2 , 3 , 4 , 5 ] l.append('x' ) print (l)l.insert(3 , 'y' ) print (l)print (l.pop(1 )) print (l)
[0, 1, 2, 3, 4, 5, 'x']
[0, 1, 2, 'y', 3, 4, 5, 'x']
1
[0, 2, 'y', 3, 4, 5, 'x']
1 2 print (l * 2 ) print (l + [6 , 7 ])
[1, 'y', 2, 3, 4, 5, 'x', 1, 'y', 2, 3, 4, 5, 'x']
[1, 'y', 2, 3, 4, 5, 'x', 6, 7]
list 可以排序 (当元素为同一类型且可比较大小时), 返回到原列表
1 2 3 l = ['b' , 'a' ] l.sort() l
['a', 'b']
[1, 2]
1
{1, 2, 3}
set 不可索引, 但可用作 for 循环. 见 Python 进阶#迭代器
1
2
3
1 2 l2 = [i for i in s] print (l2)
[1, 2, 3]
if 语句
python 里没有 case
, 只有 if
(非零数值、非空字符串、非空 list 等皆为 True) 1 2 3 4 5 6 7 8 if <条件判断1 >: <执行1 > elif <条件判断2 >: <执行2 > elif <条件判断3 >: <执行3 > else : <执行4 >
相关工具
pip
The Python Package Index (PyPI) is a repository of
software for the Python programming language. PyPI helps you find
and install software developed and shared by the Python community.
https://pypi.org/
1 $ pip install <pkg_name>
(其他命令见 Python 安装和配置#用 pip
安装 python 包 )

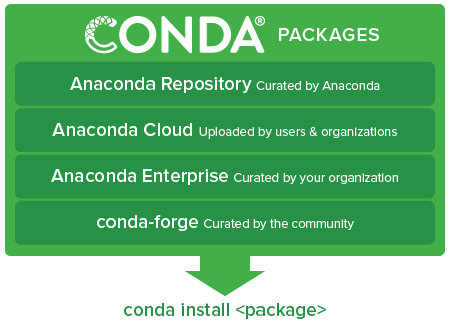

Anaconda
Anaconda (https://www.anaconda.com/) 安装好的
conda 包含独立于系统的 python 版本, 一部分已编译好的包, pip 工具,
以及不同环境的子目录. 可根据需要切换不同的 conda 环境以使用不同的
python 版本或不同的包的组合.
1 $ conda install <pkg_name>
其他命令见 Python
安装和配置#使用 conda 命令 详细说明见 Python 进阶#Anaconda

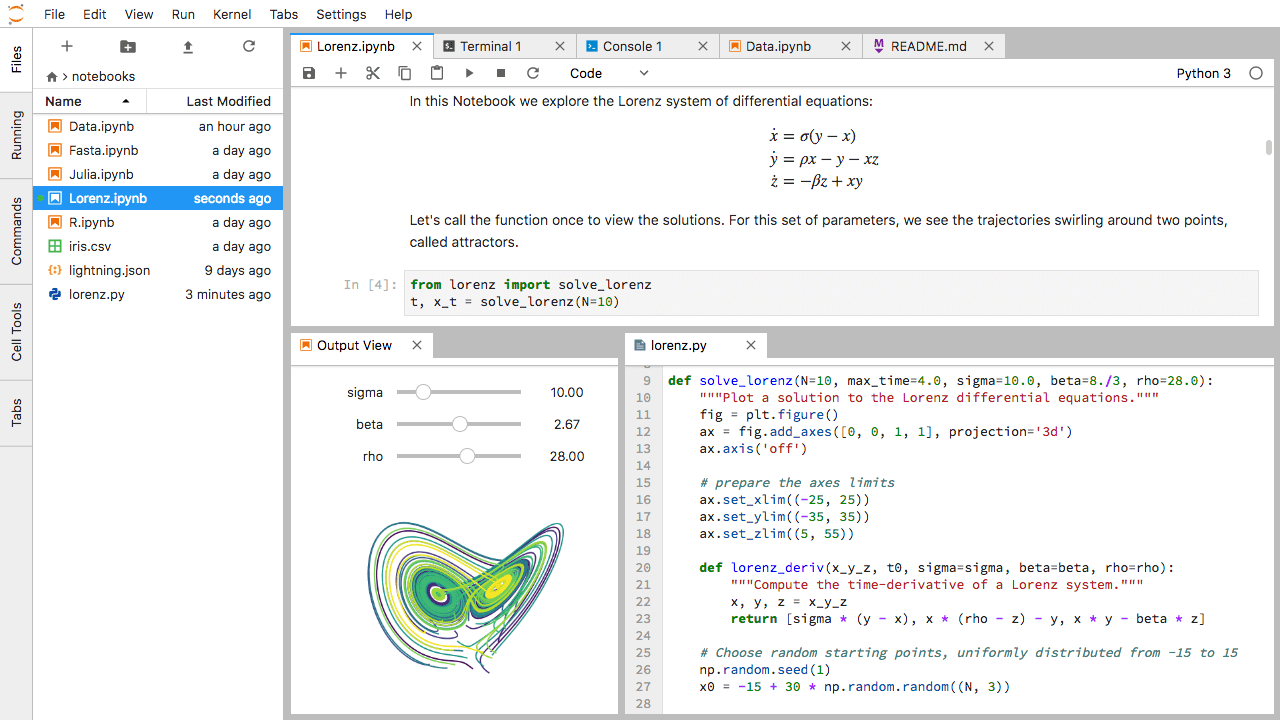

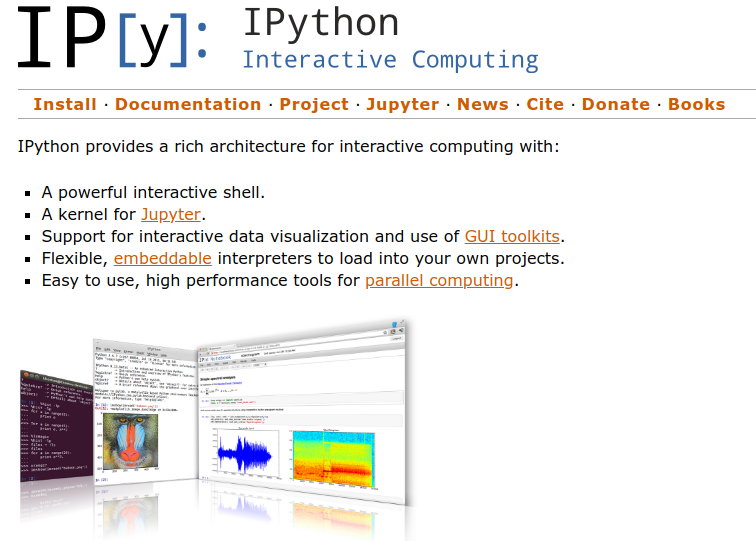

IPython & Jupyter
1 2 3 4 5 6 !cd && gnome-terminal --window-with -profile='lydia_white' !sleep 0.5 && xdotool type --delay 200 "ipython" && xdotool key Return !sleep 3 && xdotool type --delay 200 "!idl" && xdotool key Return !sleep 3 && xdotool key Ctrl+d !sleep 1 && xdotool type --delay 200 "!csh -c sswidl" && xdotool key Return
http://jupyter.org/

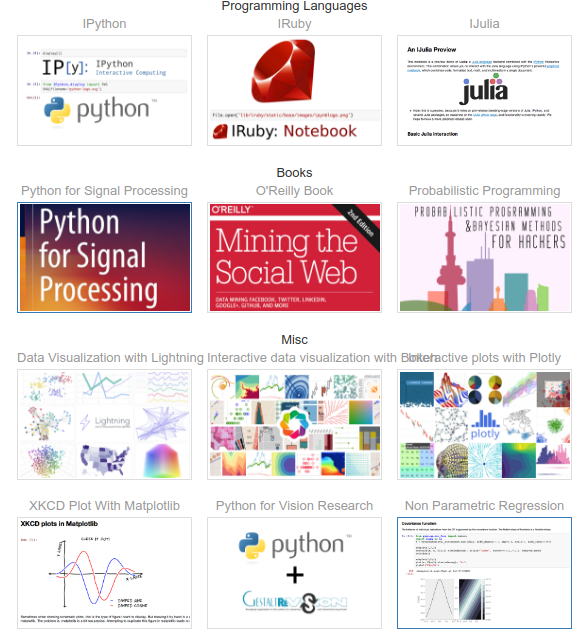

https://nbviewer.jupyter.org/
参考文档 http://jupyter-notebook.readthedocs.io/en/stable/
1 $ jupyter notebook [filename]
常用包介绍
Python 自带包和模块
1 2 3 4 5 6 from math import * from copy import deepcopyfrom pprint import pprint import requestsimport osimport sys
NumPy, SciPy
概览

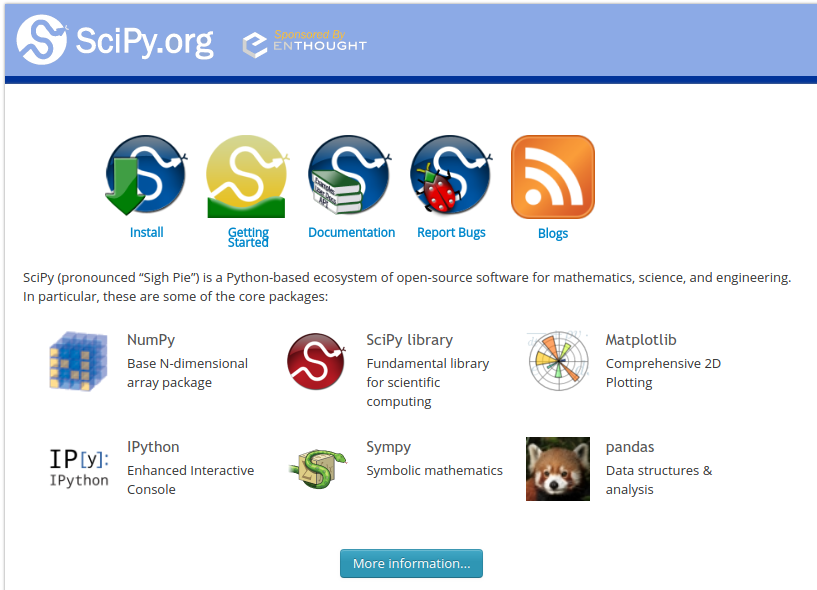

https://www.scipy.org

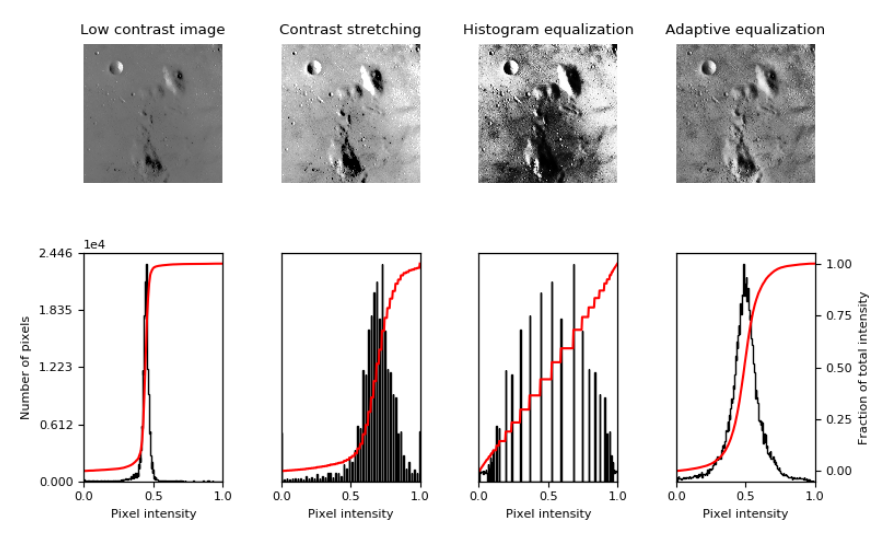

http://scikit-image.org
导入包的不同方式将在各例子中看到.
参考:
生成 numpy.ndarray 数组
将 list 或 tuple 转换为 numpy.ndarray
1 2 3 4 5 6 7 8 9 10 11 12 13 import numpy as npa = np.array([0 , 1 , 2 , 3 , 4 ]) a[0 ] a[-1 ] a[0 :3 ] a[:3 ] a[2 :4 ] a[2 :-1 ] a[2 :] a[0 :4 :2 ] a[4 :2 :-1 ] a[[1 , 4 , 3 ]]
多维:
1 a = np.array([[0 , 1 , 2 ], [3 , 4 , 5 ]]); a
array([[0, 1, 2],
[3, 4, 5]])
1 2 a = np.array(((0 , 1 , 2 ), (3 , 4 , 5 ))); a
array([[0, 1, 2],
[3, 4, 5]])
1
1
从一维数组转变为多维:
1 2 3 4 a = np.arange(12 ).reshape((3 , -1 )); a
array([[ 0, 1, 2, 3],
[ 4, 5, 6, 7],
[ 8, 9, 10, 11]])
array([ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11])
花式切片的多维例子:
1 2 3 a = np.arange(12 ).reshape(3 , -1 ) a[[0 , 1 ],[0 , 2 ]]
array([0, 6])
np.zeros (shape,
dtype=float), np.ones (shape, dtype=float)
array([[0., 0., 0.],
[0., 0., 0.]])
array([[1., 1., 1.],
[1., 1., 1.]])
np.arange ([start,] stop[, step,], dtype=None)
生成的数组元素数据类型和参数一致. 方便记忆: 最简形式
np.arange
(N ) 中的整数 N 即为
元素个数 .
1 np.arange(6 ).reshape((3 , 2 ))
array([[0, 1],
[2, 3],
[4, 5]])
1 np.arange(6 ).reshape((3 , -1 ))
array([[0, 1],
[2, 3],
[4, 5]])
np.linspace (start, stop, num=50,
endpoint=True , retstep=False, dtype=None)
默认生成的元素是浮点型 注意 np.linspace
和
np.arange
的不同规则
array([0., 1.])
1 np.linspace(0 , 1 , 2 , endpoint=False )
array([0. , 0.5])
更多数组创建方法见 numpy 官网: https://docs.scipy.org/doc/numpy/reference/routines.array-creation.html
https://docs.scipy.org/doc/numpy/user/basics.creation.html#arrays-creation
1 a = np.arange(12 ).reshape(3 , -1 ); a
array([[ 0, 1, 2, 3],
[ 4, 5, 6, 7],
[ 8, 9, 10, 11]])
array([[ 0, 4, 8],
[ 1, 5, 9],
[ 2, 6, 10],
[ 3, 7, 11]])
更多数组操作见 numpy 官网 https://docs.scipy.org/doc/numpy/reference/routines.array-manipulation.html
矩阵操作见 Python 进阶#矩阵

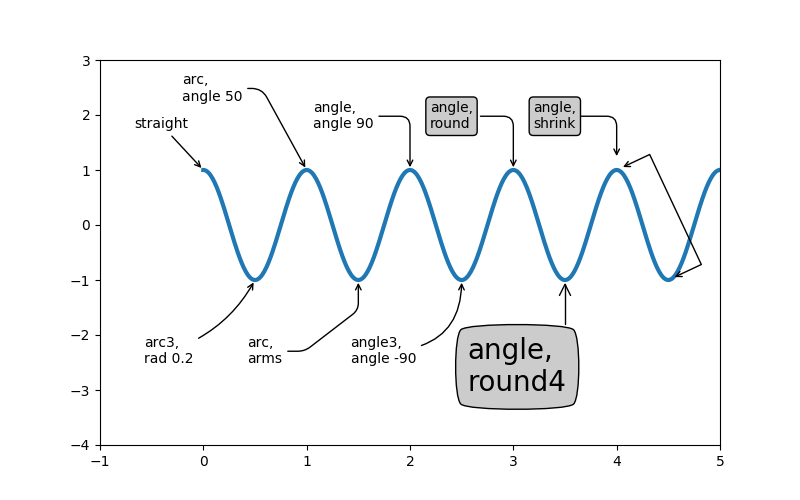

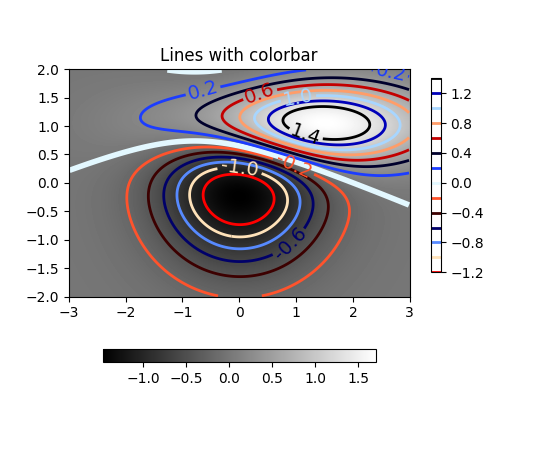

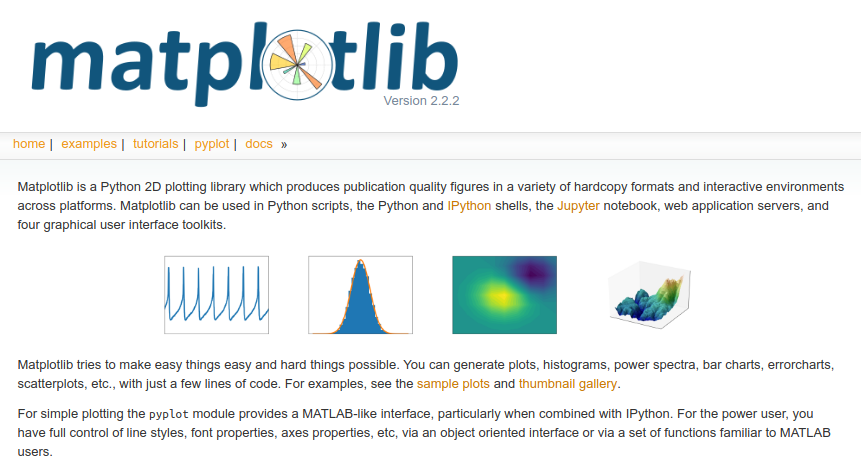

Matplotlib
1 import matplotlib.pyplot as plt
创建一个图像 (三种写法皆可):
1 fig, ax = plt.subplots()
1 2 fig = plt.figure(1 , (12 , 6 ), dpi=100 ) ax = fig.add_subplot(111 )
1 2 fig = plt.gcf() ax = plt.gca()
获取帮助:
例:
1 2 %matplotlib %run -e 'examples/test_plot.py'
1 2 %matplotlib %run -e 'examples/test_imshow.py'
天文相关包
Astropy
官方文档 http://docs.astropy.org/en/stable/index.html
坐标系统 http://docs.astropy.org/en/stable/coordinates/index.html
1 2 from astropy import units as ufrom astropy.coordinates import SkyCoord
参考 https://python4astronomers.github.io/astropy/astropy.html

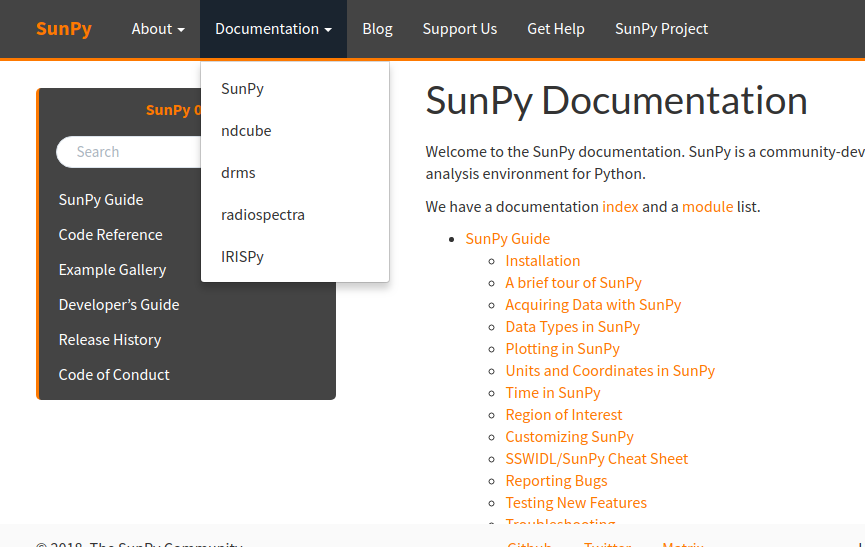

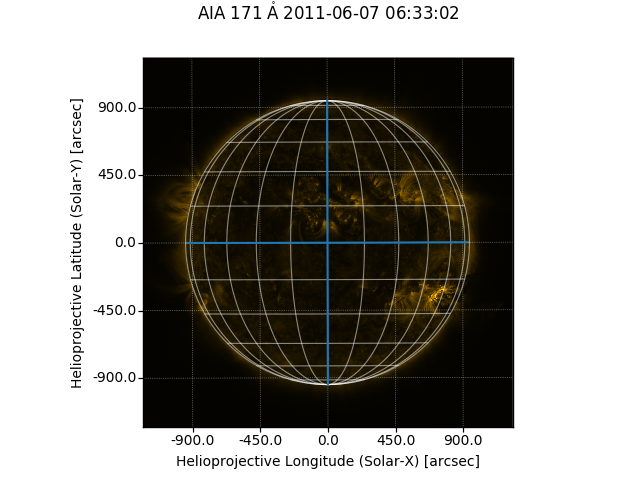

SunPy
HMI 示例见 Python 进阶#SunPy
示例 https://github.com/lydiazly/scripts-sunpy
参考:

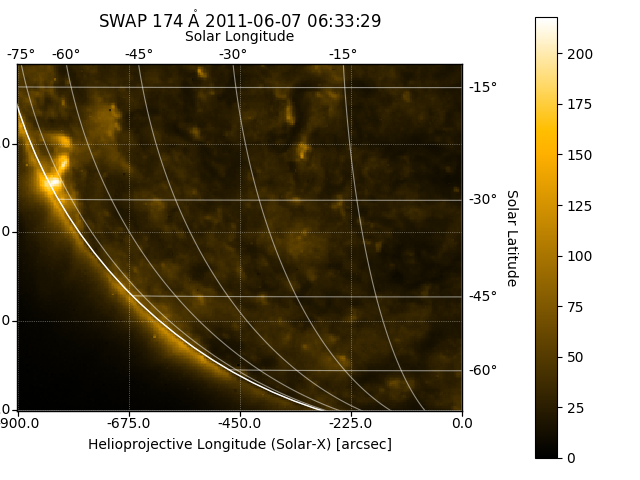

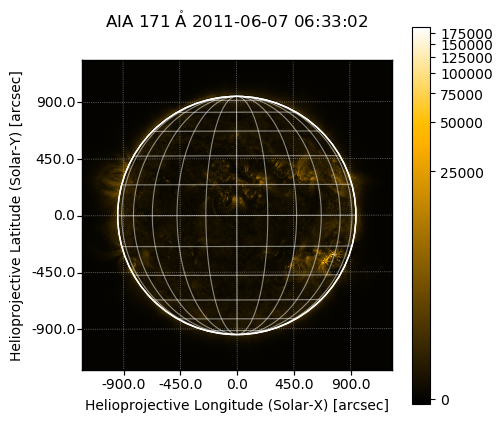

简单的例子 (来自官网):
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 %matplotlib inline import sunpy.map import matplotlib.pyplot as pltimport sunpy.data.sampleaia = sunpy.map .Map(sunpy.data.sample.AIA_171_IMAGE) fig = plt.figure(1 , (5 , 5 ), dpi=100 ) ax = plt.subplot(111 , projection=aia) aia.plot() aia.draw_limb() aia.draw_grid() aia.draw_limb() plt.colorbar();
/home/lydia/miniconda3/lib/python3.6/site-packages/sunpy/map/sources/sdo.py:48: SunpyDeprecationWarning: Use Matplotlib to load the colormaps
self.plot_settings['cmap'] = cm.get_cmap(self._get_cmap_name())
png
获取一些常数:
1 2 3 from sunpy.sun import constants as conprint (con.au)
Name = Astronomical Unit
Value = 149597870700.0
Uncertainty = 0.0
Unit = m
Reference = IAU 2012 Resolution B2
Name = Solar radius
Value = 695508000.0
Uncertainty = 26000.0
Unit = m
Reference = Allen's Astrophysical Quantities 4th Ed.
常见数据文件读写
一般情况
1 2 3 4 f = open (filename, 'w' ) ... ... f.close()
更好的用法: 1 2 3 with open (filename, 'w' ) as f: ... ...
txt, csv 文件读写
逐行读取整行的方式: 使用 strip
可以用来去掉读入的每行末尾的 ''
1 2 3 4 5 lines = [] with open ('data/data.csv' , 'r' ) as f: for line in f: lines.append(line.strip().split(',' )) lines
[['col1', 'col2', 'col3'],
['row1', '1', '1e1'],
['row2', '2', '2e-1'],
['row3', '3', '3e+2']]
使用 numpy, 读取后直接转成数组的方式 (推荐):
np.loadtxt
, np.genfromtxt
(写文件是
np.savetxt
) 超大文件读取建议用 pandas 包.
e.g.
1 2 3 >>> import numpy as np>>> arr = np.loadtxt(fname, skiprows=1 , delimiter=',' ) >>> col1, col2 = np.loadtxt(fname, skiprows=1 , usecols=(1 , 2 ), unpack=True )
np.genfromtxt
和 np.loadtxt
类似,
增加了处理 missing values 的功能. (但参数 skiprows=1 需替换为
skip_header=1)
例 (这里使用功能更多的 np.genfromtxt
代替
np.loadtxt
):
1 2 3 4 5 6 arr = np.genfromtxt('data/data.csv' , skip_header=1 , names=('col1' , 'col2' , 'col3' ), dtype=('U15' , 'int' , 'float' ), delimiter=',' ) print (arr[['col1' , 'col2' ]])
[('row1', 1) ('row2', 2) ('row3', 3)]
1 2 3 4 5 6 7 8 arr = np.genfromtxt('data/data2.csv' , skip_header=1 , names=('col1' , 'col2' , 'col3' ), dtype=('U15' , 'int' , 'float' ), missing_values=None , filling_values=('' , 0 , np.nan), delimiter=',' ) print (arr)
[('row1', 0, 10. ) ('', 2, 0.2) ('row3', 3, nan)]
一般而言, 对于一个由分隔符分隔的字符串, 转成一个数组的方式:
np.fromstring(string, dtype=float, count=-1, sep='')
1 np.fromstring('0 1 2' , dtype=int , sep=' ' )
array([0, 1, 2])
1 np.fromstring('0., 1., 2.' , sep=',' )
array([0., 1., 2.])
numpy save 文件读写
1 2 3 4 np.save('fname' , arr) np.savez('fname' , arr) np.savez_compressed('fname' , arr) np.load('fname.npz' )
1 2 3 arr = np.ones(5 ) np.savez('data/np_array' , a=arr, b=0 )
data/np_array.npz
1 2 3 data = np.load('data/np_array.npz' ) print ((data['a' ], data['b' ], int (data['b' ])))
(array([1., 1., 1., 1., 1.]), array(0), 0)
IDL sav 文件读取
1 2 from scipy.io.idl import readsavdata = readsav('dname.sav' , verbose=True , python_dict=False )
默认读出的是scipy.io.idl.AttrDict
类型, 即 key
的大小写不敏感. 想要得到大小写敏感的 python dict, 设置
python_dict=True
即可. 例:
1 2 3 4 5 6 7 8 from scipy.io.idl import readsavdata = readsav('data/myidlfile.sav' ) print (type (data))print (data.keys()) print (data['X' ].shape) data = readsav('data/myidlfile.sav' , python_dict=True ) print (type (data))print (data['x' ].shape)
<class 'scipy.io.idl.AttrDict'>
dict_keys(['x', 'y', 'str'])
(25,)
<class 'dict'>
(25,)
FITS 文件读取
参考: http://docs.astropy.org/en/stable/io/fits https://python4astronomers.github.io/astropy/fits.html
[Note] If you are already familiar with PyFITS, astropy.io.fits
is in fact the same code as the latest version of PyFITS, and you can
adapt old scripts that use PyFITS to use Astropy by simply doing:
1 from astropy.io import fits as pyfits
However, for new scripts, we recommend the following
import: 1 from astropy.io import fits
fits.open
1 2 3 4 5 6 7 8 9 10 11 12 13 >>> from astropy.io import fits>>> hdulist = fits.open ('<filename>.fit' )>>> hdulist.info() Filename: <filename>.fit No. Name Type Cards Dimensions Format 0 PRIMARY PrimaryHDU ... ... ...1 ENERGIES BinTableHDU ... ... ...>>> hdu = hdulist[0 ]>>> hdu.data >>> hdu.header['<key>' ] >>> hdu.writeto('<filename>.fits' ) >>> hdulist.writeto('<filename>.fits' )
1 2 3 4 >>> hdu = fits.PrimaryHDU()>>> hdu.writeto('<filename>.fits' ) >>> hdu.writeto('<filename>.fits' , clobber=True )
fits.getdata
, fits.getheader
1 2 >>> data = fits.getdata('<filename>.fit' )>>> header = fits.getheader('<filename>.fit' )
* SunPy
1 2 3 4 5 >>> import sunpy.io>>> hdulist = sunpy.io.read_file('<filename>.fits' ) >>> hdu = hdulist[1 ]>>> hdu.data
1 2 3 >>> import sunpy.map >>> smap = sunpy.map .Map('<filename>.fits' )
例:
1 2 3 from astropy.io import fitsfname = 'scripts-sunpy/plothmi/data/hmi.B_720s.20150827_052400_TAI.field.fits' hdulist = fits.open (fname)
Filename: scripts-sunpy/plothmi/data/hmi.B_720s.20150827_052400_TAI.field.fits
No. Name Ver Type Cards Dimensions Format
0 PRIMARY 1 PrimaryHDU 6 ()
1 1 CompImageHDU 155 (4096, 4096) int32
1 2 3 hdulist.verify('silentfix+warn' ) hdu = hdulist[1 ] hdu.data.shape
(4096, 4096)
1 2 3 4 import sunpy.iohdulist = sunpy.io.read_file(fname) hdu = hdulist[1 ] hdu.data.shape
(4096, 4096)
